A Systematic Literature Review on the Effects of Non-Driving Tasks on the Takeover Process in Highly Automated Driving

Sol Hee Yoon , Seul Chan Lee
10.5143/JESK.2023.42.1.1 Epub 2023 March 03

0
Cited By

Abstract

Objective: The aim of this research is to analyze the characteristics of non-driving related tasks (NDRT) and determine how they affect the transition of control in highly automated driving.

Background: Highly automated driving systems are intelligent and assistive systems that are mostly used in commercial vehicles. These technologies aid drivers in the task of driving, allowing them freedom to attend to other tasks. However, these highly automated driving systems will continue to demand driver intervention in driving. Therefore, it is necessary to explore the characteristics of NDRT and their influence when regaining control of the vehicle.

Method: A systematic literature review was conducted to investigate the effects of NDRT on the transition of control in highly automated driving, considering task characteristics, type of measurement, and experimental results from previous studies. A total of 27 articles were selected for the final analysis based on the selection criteria.

Results: The literature review results showed that, depending on the task characteristics, NDRT can be classified into experimental tasks or natural tasks. In highly automated driving, NDRTs are generally used to simulate different drivers' states before a transition of control occurs. The transition of control is measured by evaluating and analyzing each of the stages of the takeover process. These measures are divided into takeover performance measures and post-takeover performance measures. The influence of NDRT in the transition of control differs between studies which can be explained by the specific NDRT selected in each of the research and the measure selected to analyze the transition of control. Although there is a difference in the effect of NDRT, it is agreeable that NDRT has an important influence on drivers' state in highly automated driving, and can affect the transition of control.

Conclusion: In highly automated driving, NDRT are a key factor that influences the transition of control. The driver's cognitive, physical, and visual resources used during the NDRT can affect each of the processes and tasks that the drivers have to perform to regain control of the vehicle.

Application: This research provides insights into the influence of NDRT in highly automated driving and its effect on each of the processes of transition of control. It allows an understanding of the impact of drivers' state before the takeover is performed.



Keywords



Non-driving related Tasks (NDRT) Takeover Transition of control Highly automated driving



1. Introduction

Recent commercial vehicles are being equipped with a higher level of automated driving systems (ADS). These ADS, such as lane centering assist (LCA), adaptive cruise control (ACC), and automatic emergency braking (AEB), enable vehicles to drive autonomously without the intervention of driver under certain circumstances (Alrefaie et al., 2019; NHTSA, 2013; SAE International, 2018). In conventional driving without ADS, drivers are not recommended to perform non-driving related task (NDRT) because it can cause distraction and safety issues (Liang et al., 2021). Thus, performing NDTR has been considered secondary and distracting tasks. However, the increase in automation level enables drivers to immerse diverse tasks even if it is not related to driving.

The Society of Automotive Engineers (SAE) classified driving automation into six levels, from level 0 (no automation) to level 5 (full automation) (SAE International, 2018). It is expected that the driver's role in vehicles will completely change when we get to the era of fully autonomous vehicles. Human intervention will be required in different tasks depending on the level of automation. Therefore, research on how drivers interact with different levels of automation is important to ensure safe driving (Köhn et al., 2019). In particular, it is important to focus on how driver's behavior changes due to the level of automation and the new type of tasks demanded by drivers for each level. For instance, vehicles of level 3 (conditional automation) and level 4 (high automation) automation will be featured with automated systems that will assist most of the driving journeys depending on the environment (NHTSA, 2013). Thus, drivers will be only required to intervene in some emergency situations in these levels (Yoon et al., 2021; Eriksson and Stanton, 2017).

The intervention of drivers to regain control of the vehicle in highly automated vehicles is defined as the takeover process. The most important task for drivers in a highly automated driving situation is to be able to regain control of the vehicle, it is critical to take into consideration driver's state before the takeover request is issued. For instance, drivers can interact with their smartphones, watch a video, or read a book during automated driving mode and then be required to regain control of the vehicle. These changes in driver behavior and states are considered important in studies of highly automated vehicles. In this study, we focus on assessing and evaluating the NDRT used in previous research and how these tasks influence the takeover process. Hence, this will enable to understand the changes in task characteristics, as well as takeover performance for safe driving in highly automated vehicles. This study aims to analyze the effects of NDRT on the takeover process in highly automated driving by applying a systematic literature review (SLR) method. The following research questions were addressed to achieve the objective:

RQ1: What types of NDRT were used to evaluate drivers' takeover performance in highly automated driving?

RQ2: What measures were used to evaluate the takeover process in relation to NDRT in highly automated driving?

RQ3: How did NDRT influence takeover process in highly automated driving?

2. Method

We applied the SLR method to achieve the research goal and answer the RQs (Booth et al., 2016). Among the various methods, we followed the preferred reporting items for systematic reviews and meta-analysis (PRISMA) (Moher et al., 2009) which includes four stages: identification, screening, eligibility, and final selection. Figure 1 shows the flow of included and excluded articles based on the four stages. During the search process, we defined three keyword groups. The first group included 'autonomous', 'automated', and 'self-driving'. The second group of keywords included 'takeover' and 'transition of control'. The final group consisted of 'non-driving related task', 'physical task', 'cognitive task', and 'visual task'. We made combinations of three keywords from each group and searched articles with the "AND" Boolean; for instance: 'automated + takeover + non-driving related task'. A total of 24 keyword combinations were used to collect the review articles. Science Direct, Web of Science, ACM Digital Library were selected as databases. The search process was conducted in December 2021. In the first stage, identification, we collected 265 articles (Science Direct: 128, Web of Science: 78, and ACM Digital Library: 59). After eliminating the redundant articles, a total of 146 articles were left. In the screening stage, we reviewed the articles based on the following criteria: 1) include full papers or full proceedings papers, 2) include articles published after 2010, and 3) exclude abstract-only proceedings, book chapters, thesis, and technical report. At this stage, a total of 66 articles were left. In the eligibility stage, we reviewed the paper based on the title and abstract considering the following criteria: 1) include articles from the perspective of Human Factors and Human-Computer Interaction and 2) exclude articles that were purely technical, developmental, electrical/mechanical/computer engineering relevant. In the final selection stage, we selected articles that were related to autonomous vehicles and highly automated vehicles. After completing this procedure, 27 articles were selected for the final analysis. All the selected papers were fully reviewed in terms of RQs.

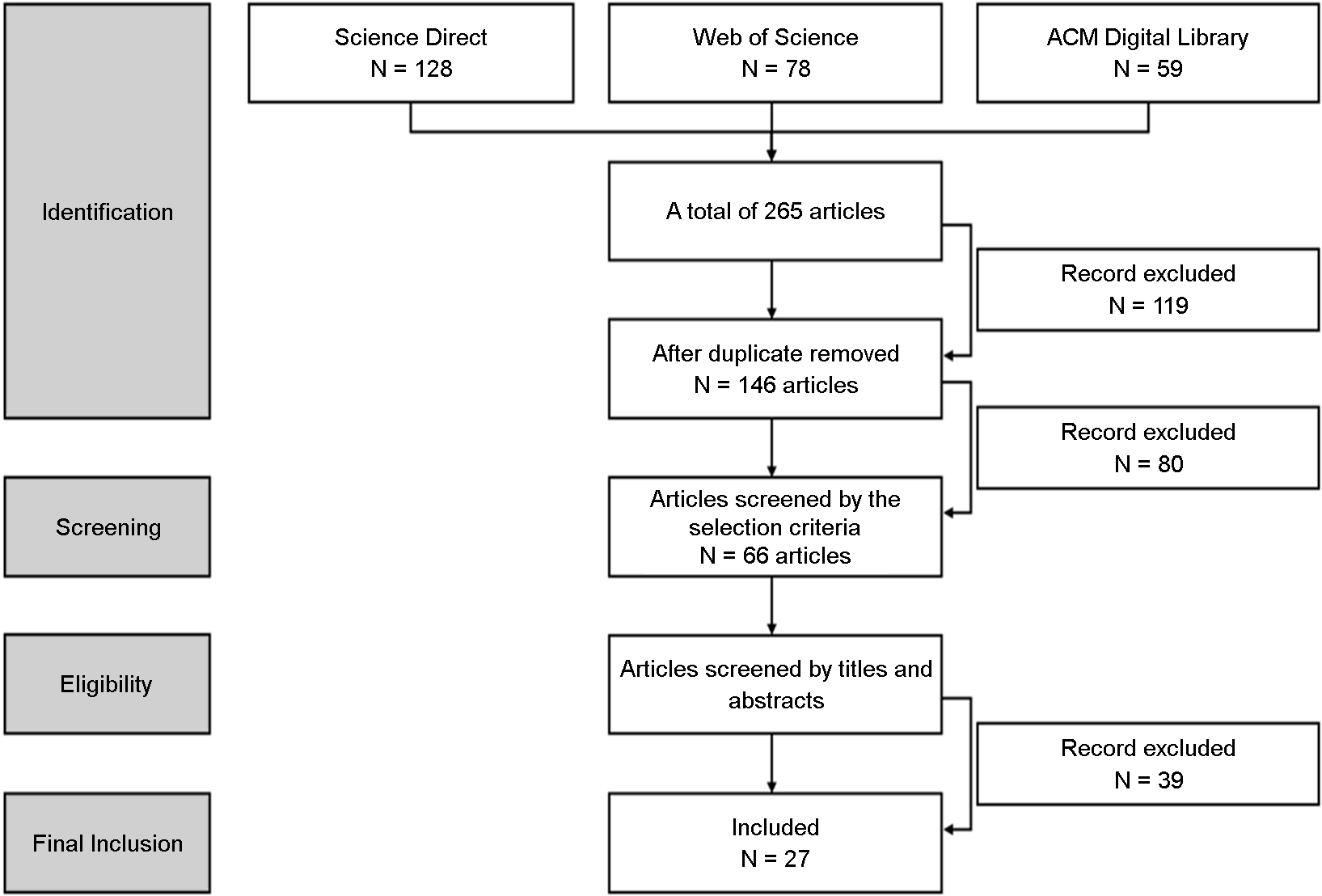

Figure 1. Flow of the systematic review process
3. Results

3.1 Types of NDRT for evaluating drivers' takeover performance in highly automated driving

The NDRTs used in autonomous vehicle research can be classified into two categories: experimental tasks and natural tasks. The experimental tasks include activities that are conducted in the controlled environment of a laboratory to observe human behaviors. These tasks are characterized as easily controllable by the researchers. On the other hand, natural tasks refer to real activities that can be performed in real driving contexts. The experiment can secure ecological validity with natural tasks compared to using experimental tasks. However, it is more difficult to control experimental task conditions.

Table 1 shows a summary of the experimental tasks used to evaluate driver behavior in highly autonomous driving research. Experimental tasks mostly consisted of activities previously used in the psychological research area to observe the mental and cognitive behaviors of humans. For instance, the experimental NDRT included the Modified Psychology Experiment Building Language visual search task, Little Man task, Surrogate Reference Task, Peripheral Detection Task, Reading Span Task, and n-back tasks. These tasks were selected to provide drivers with different levels of cognitive load, engagement on the NDRT, or type of visual load during automated driving. It is possible to notice that studies using experimental tasks could control the psychological state of each of the participants and therefore were able to focus on determining how driver's psychological condition influences the takeover process.

Task

Description

Reference

Modified Psychology Experiment
Building Language (PEBL) visual search task

Visual search task that consists of finding a target character
(i.e., "Q") among distractor characters (i.e., "O").

Azevedo-Sa et al.
(2021)

Little Man Task

(Mental rotation task)

The task consists of a figure displayed with a suitcase in either
the left or right hand that is rotated around different axes.
Participants are asked to decide in which hand the suitcase
is being carried.

Köhn et al. (2019)

Surrogate Reference Task (SuRT)

Visually search task that consists of finding a target circle (larger)
that is surrounded by a set of distractor circles (smaller).

Liang et al. (2021)

Peripheral Detection Task (PDT)

A visual task that requires participants to respond to a visual signal presented in their peripheral vision.

Liang et al. (2021)

Reading span task

Reading task that consists of participants reading unconnected sentences and determining whether they semantically made sense.

Borojeni et al.
(2018)

N-back task (visual/oral)

A task that consists of a sequence of visual/auditory stimuli,
presented to the participants that is later recalled by
participants by selecting the stimuli that match the
n-step earlier in the sequence.

Du et al. (2020)

Wu et al. (2019)

Table 1. Experimental NDRT used for autonomous vehicle research

As presented in Table 2, naturalistic tasks include the no-task condition (not doing anything), phone conversation, reading, conversing, watching a video, interacting with an in-vehicle infotainment system (IVIS), drinking, using an electronic device, using a smartphone, playing mobile games, texting on the phone, listening to music, and grooming. As we can see from the result of the description of the naturalistic tasks, these tasks can be considered secondary tasks in conventional driving and therefore as commonly performed activities by the drivers. From the results of the analysis of previous studies, we encountered one important characteristic of these tasks. In previous studies using natural tasks, the experimenter found it difficult to control the way in which each of the participants was engaged in the naturalistic task. That is to say, the same natural task can vary between experiments and even among participants in the same research. This is because naturalistic tasks were asked to be performed by the driver; however, the driver can perform the same task in different ways. For instance, in a phone conversation task, the topic of conversation (level of cognitive demand, engagement, attention to the conversation), the way of interaction (hands-free or private phone call), and hands in use (left hand, right hand, no hands in use) are not fixed. Therefore, naturalistic tasks were performed in a less controlled environment, presenting different drivers' levels of demand regarding the driver's physical, cognitive, and visual resources in use.

Task

Description

Reference

No-task
(control group)

Participants did not perform any type of additional task.

Alrefaie et al. (2019)

Kim et al. (2019)

Minhas et al. (2020)

Yoon et al. (2019)

Yoon et al. (2021)

Phone conversation

A task that consists of talking on the phone (with the researcher)
about a predefined topic or guessing a quiz (Twenty questions).

Alrefaie et al. (2019)

Yoon et al. (2019)

Yoon et al. (2021)

Reading

A task that consists of reading different content provided by the experimenter.

Baek et al. (2019)

Blommer et al. (2017)

Clark and Feng (2017)

Dogan et al. (2017)

Tanshi et al. (2019)

Yang et al. (2020)

Yoon et al. (2021)

Conversation

A task that consists of talking with an experimenter regarding any
topic of interest or giving a quiz.

Clark and Feng (2017)

Kim et al. (2019)

Köhn et al. (2019)

Lin et al. (2019)

Lotz, et al. (2019)

Minhas et al. (2020)

Wang and Söffker (2018)

Watching videos

A task that consists of watching a visual content with sounds
through a display.

Baek et al. (2019)

Gerber et al. (2020)

Kim et al. (2019)

Köhn et al. (2019)

Lotz et al. (2019)

Yang et al. (2020)

Yoon and Ji (2019)

Yoon et al. (2019)

Yoon et al. (2021)

Interacting with IVIS

A task that consists of actively interacting with the IVIS system to control the system (e.g.: search for a radio station, adjust the cabin temperature, search content on the system, read messages and
e-mails, so on).

Alrefaie et al. (2019)

Blommer et al. (2017)

Yoon and Ji (2019)

Yoon et al. (2021)

Drink

A task that simulates a condition where participants had to drink
any beverage.

Kim et al. (2019)

Yoon et al. (2021)

Electronic device use

A task that consists of using an electronic device mounted or handheld such as tablet PC or laptop to perform different types
of activity.

Clark and Feng (2017)

Yang et al. (2020)

Interaction with smartphone

A task that consists of natural use of smartphone in autonomous driving. Include activities such as searching for information or using social media activities.

Dogan et al. (2017)

Minhas et al. (2020)

Playing mobile games

A task that consists of playing a smartphone game that was
predefined by the experiment. Most smartphone games
involved using both hands to hold the smartphone.

Baek et al. (2019)

Ou et al. (2021)

Wu et al. (2019)

Yang et al. (2020)

Yoon and Ji (2019)

Yoon et al. (2021)

Texting on the phone

A task that asked participants to use the smartphone for texting messages or typing pre-defined messages provided by the experimenter.

Baek et al. (2019)

Kim et al. (2019)

Yoon et al. (2019)

Yoon et al. (2021)

Listening to music

A task that asked participants to listen to music through the vehicle system during the automated driving.

Clark and Feng (2017)

Yoon et al. (2021)

Grooming

A task that asked participants to groom themselves during the automated driving.

Clark and Feng (2017)

Table 2. Naturalistic NDRT used for autonomous vehicle research

The result of the analysis of NDRT helps us classify tasks into two main groups, depending on how and what aspects of driver behavior are going to be evaluated or assessed. Both approaches have pros and cons depending on the research objectives. Therefore, it is possible to suggest that the main difference between the experimental and naturalistic tasks is the trade-off between the ecological validity of NDRT and the controlled NDRT conditions for the research. The selection of NDRT for future autonomous vehicle research is highly related to the research objective, hypothesis, and the desired quality of the results. For the stage in which takeover in highly automated driving research is being conducted, it is possible to notice that most articles opt to use natural tasks as an initial study of the influence of NDRT on the takeover process.

3.2 Evaluation measurement for takeover in relation to NDRT

There are several measurements used to evaluate the transition of control in highly automated driving for drivers engaged in NDRT. Based on the analysis of previous research, performance measures can be divided into two main categories. The first category consists of measures that evaluate the process involved in the transition of control between the vehicle and the drivers. This process consists of measuring and evaluating the performance of drivers with regards to the allocation of visual attention on the road, the physical allocation of hands and feet to drive, and cognitive resource allocation to gain situational awareness. These measures mostly evaluate the performance of the drivers to regain control of the vehicle and they can be defined as takeover measures. The second category consists mainly of the evaluation of driver's state after the takeover process. That is, it measures and evaluates the quality of driving performance after the transition of control was performed. This second category can be named post-takeover measures. Table 3 shows a summary of the measures used in previous research to evaluate the effect of NDRT in the transition of control in highly automated driving.

Takeover measures assess the performance of the takeover by analyzing the whole takeover task and by looking up in detail each of the sub-process involved. Based on previous articles, the takeover task is analyzed by assessing the performance by evaluating and gathering data on the takeover difficulty, response time, takeover readiness, and the transition method selected to regain control of the vehicle. Also, it includes measures that assess the sub-process of takeover process which can be divided depending on the resources used during the re-engagement task. Thus, measures are classified into motoric, visual, and cognitive performance. For the motoric measure, most studies focused on analyzing the time taken by drivers to react to the takeover request by assessing the time taken to allocate drivers' hands on the wheel. Visual measures focus on the time taken for drivers to first gaze or fix their visual attention on the road. For the cognitive evaluation, situation awareness and workload of drivers when regaining control of the vehicle after being engaged in an NDRT, are assessed.

Post-takeover measures evaluate driving performance after the transition of control. These measures are used to identify the results of how safely drivers were able to regain control of the vehicle after the transition. Measures include the time of collision with an obstacle and the number of collisions due to unsuccessful transition of control. According to previous studies, the engagement of drivers with NDRT can influence the success and failure of a takeover which is related to the level of safety and quality of the takeover.

Category

Sub
category

Measure

Description

Reference

Takeover
measures

Overall
takeover
performance
measure

Takeover
difficulty

Subjective report of the takeover difficulty.

Alrefaie et al. (2019)

Response time
(takeover time)

The time taken by a driver from the presentation of a takeover request to
the first action to reassume manual
control of the vehicle

Alrefaie et al. (2019)

Baek et al. (2019)

Borojeni et al. (2018)

Clark and Feng (2017)

Dogan et al. (2017)

Du et al. (2020)

Köhn et al. (2019)

Lotz et al. (2019)

Minhas et al. (2020)

Ou et al. (2021)

Wang and Söffker (2018)

Wu et al. (2019)

Yang et al. (2020)

Yoon and Ji (2019)

Yoon et al. (2019)

Yoon et al. (2021)

Takeover
readiness

How participants felt they were ready to
take control of the vehicle

Du et al. (2020)

Transition
method

Type of operation performed to resume manual driving after TOR: throttle, brake,
and steering.

Baek et al. (2019)

Represented how they took over the
driving: steering, braking, or accident

Wang and Söffker (2018)

Motoric
measure

Hand-on wheel
time

Time taken by a driver to react to the takeover request by putting their hands on
wheel after a takeover request was issued.

Lotz et al. (2019)

Yang et al. (2020)

Yoon and Ji (2019)

Yoon et al. (2019)

Visual
measure

Eyes-on-road
reaction time

Time taken by a driver from the issue of
the takeover request to the time taken to position their visual attention (first fixation
or gaze) on the road.

Baek et al. (2019)

Du et al. (2020)

Lotz et al. (2019)

Yoon and Ji (2019)

Yoon et al. (2019)

Cognitive
measure

Situation
awareness

Measure the situational awareness level of drivers during the transition of control of
the vehicle.

Köhn et al. (2019)

Liang et al. (2021)

McKerral et al. (2019)

Takeover
measures

Cognitive
measure

Workload

Participants' subjective workload response
to the interruption to regain control while performing NDRT and the takeover task.

Borojeni et al. (2018)

Köhn et al. (2019)

Liang et al. (2021)

Wang and Söffker (2018)

Wu et al. (2019)

Yoon and Ji (2019)

Post-takeover
measures



Time to collision
to an obstacle (TTC)

The time between the first action (steer/brake)
and collision to the front vehicle.

Borojeni et al. (2018)

Number of collisions

The number of collisions that occurred.

Borojeni et al. (2018)

Table 3. Transition of control measures for highly automated driving

3.3 Statistical results of NDRT effect in takeover process

After literature review, we can conclude that the influence of NDRT in the takeover process varies between research. From Table 4, we can see that the NDRT type used in each of the experiments as well as the NDRT task condition given to each of the participants, were different. These differences in the statistical research analysis was because the NDRT selected for each of the experiments were different. That is, depending on the purpose of the research, the experimenter selected a different type of NDRT, taking into consideration the characteristics of the NDRT. Therefore, it is possible to demonstrate that NDRT is an important element that must be considered in research focusing in highly automated driving.


Reference

NDRT
type

Task

Takeover
measure

Result of statistical analysis

Alrefaie et al.
(2019)

Mixed

1. Electronic device use
(email task)

2. Conversation
(Twenty question task)

3. No task (control group)

Takeover difficulty

Non-sig. effects.

Main task > TQT > no task

Response time

Sig. at p < 0.05

Baek et al.
(2019)

Naturalistic

1. Texting on the phone
2. Reading (comics)
3. Watching videos
4. Playing mobile games

Eyes-on road
reaction time

Non-sig. effect of NDRT
(p = 0.432)

Response time

Non-sig. effect of NDRT
(p = 0.519)

Control transition
method

Non-sig. differences

All tasks: brake > throttle > steering

Borojeni et al.
(2018)

Experimental

1. Reading span task
(Low vs. high engagement)

Time to collision

Non-sig. effect of NDRT engagement (p = 0.96)

Response time

Non-sig. effect of NDRT engagement (p = 0.29)

Borojeni et al.
(2018)

Experimental

1. Reading span task
(Low vs. high engagement)

Workload
(NASA-TLX)

Sig. effect of NDRT engagement (p < 0.05)

Clark and Feng
(2017)

Naturalistic

Voluntary engagement in NDRT
(Reading, grooming, electronic device use, Phone conversation, Conversation, Playing mobile games, and listening to music)

Response time

Non-sig. difference between low and high NDRT activity

F(1,29) = 0.07, p = 0.793

Dogan et al.
(2017)

Naturalistic

Voluntary engagement in NDRT
(Reading a magazine and interacting with a smartphone)

Response time

Sig. effect of NDRT
F(1,26) = 5.23, p = 0.03

Du et al.

(2020)

Experimental

Visual N-back task
(low cognitive load = 1-back, high cognitive load = 2-back)

Takeover
readiness

Sig. effects of task condition

F(1, 554) = 23.50, p < .001

Eyes-on road reaction time

Sig. effects of task condition

F(1, 534) = 21.00, p < .001

Response time

Non-sig. effects of task condition

F(1, 554) = .44, p = .51

Liang et al.

(2021)

Experimental

1. Surrogate reference task
2. Peripheral detection task
3. Monitoring task

Situation
awareness
(SAGAT)

Sig. effect of NDRT

F(2, 50) = 14.829, p < 0.001,
η2 = 0.372

Workload
(NASA-TLX)

Non-sig. effect of NDRT

F(2, 50) = 0.484, p = 0.619

Lotz et al.

(2019)

Natural task

1. Watching videos
2. Conversation (Quiz)

Hands-on
wheel time

Non-sig. effects of task condition

F(1,710) = 0.368, p = 0.544,
η2 = 0.0005

Eyes-on road reaction time

Non-sig. effects of task condition

F(1,710) = 6.61152, p = 0.010,
η2 = 0.0155

Response time

Non-sig. effects of task condition

F(1,710) = 0.52, p = 0.471,
η2 = 0.000732

Ou et al.

(2021)

Naturalistic

1. No-task

2. Playing mobile games
(puzzle game)

Response time

Sig. effect of task condition

F(1,45) = 82.556, p < .001,
η2 = 0.647

Wu et al.

(2019)

Mixed

1. No-task
2. N-back (1-back task)
3. Playing mobile game

Workload
(NASA-TLX)

Sig. effect of NDRT

F(2,54) = 5.212, p = 0.0122

Response time

Sig. effect of NDRT

F(2, 230) = 3.342, p = 0.0388

Time to collision

Sig. effect of NDRT

F(2, 168) = 3.197, p = 0.0459

Yoon and Ji
(2019)

Naturalistic

1. Interacting with
entertainment console

2. Interaction with smartphone

3. Watching videos

Eyes-on road
reaction time

Sig. effect of NDRT

F(2, 213) = 6.566, p < 0.01

Hands-on
wheel time

Non-sig. effect of NDRT

F(2, 213) = 1.002, p = 0.369

Response time

Sig. effect of NDRT

F(2, 213) = 3.914, p < 0.05

Workload
(NASA-TLX)

Sig. effect of NDRT

F(2, 78) = 3.978, p < 0.05

Yoon et al.
(2019)

Naturalistic

1. No-task
2. Phone conversation

3. Interaction with smartphone

4. Watching videos

Eyes-on road
reaction time

Sig. effect of NDRT

F(1,245) = 10.286, p = 0.002,
η2 = 0.040

Hands-on
wheel time

Sig. effect of NDRT

F(3, 459) = 48.576, p < 0.001,
η2 = 0.241

Response time

Sig. effect of NDRT

F(3546) = 7.510, p < 0.001,
η2 = 0.042

Table 4. Analysis of the Effect of NDRT in takeover measures

Table 5 shows a summary of the results of experimental research analysis on the influence of NDRT in takeover for highly automated driving. The results of previous studies on the influence of NDRT varied between and within measures. Takeover measures that did not have a significant effect on NDRT were takeover difficulty (Alrefaie et al., 2019), control transition method (Baek et al., 2019), and time to collision (Borojeni et al., 2018). Conversely, NDRT showed to have a significant effect on takeover readiness (Du et al., 2020) and situation awareness (Liang et al., 2021). Nevertheless, there were measures showing a significant effect of NDRT on the transition of control as well as research showing no significant effect. For instance, the different NDRTs and their engagement was found to have a significant effect on response time whereas, some studies showed no significant effect. Similar results were found for hands-on-wheel time and eyes-on-road reaction time.

Measures

Main effect of NDRT on the transition of control

Sig.

Reference

Non- Sig.

Reference

Takeover difficulty





ü

Alrefaie et al. (2019)

Control transition method





ü

Baek et al. (2019)

Time to collision





ü

Borojeni et al. (2018)

Wu et al. (2019)

Takeover readiness

ü

Du et al. (2020)





Situation awareness

ü

Liang et al. (2021)





Hands-on wheel time

ü

Yoon et al. (2019)

ü

Lotz et al. (2019)

Yoon and Ji (2019)

Eyes-on road reaction time

ü

Du et al. (2020)

Yoon and Ji (2019)

Yoon et al. (2019)

ü

Baek et al. (2019)

Lotz et al. (2019)

Response time

ü

Alrefaie et al. (2019)

Dogan et al. (2017)

Ou et al. (2021)

Wu et al. (2019)

Yoon and Ji (2019)

Yoon et al. (2019)

ü

Baek et al. (2019)

Borojeni et al. (2018)

Clark and Feng (2017)

Du et al. (2020)

Lotz et al. (2019)

Workload

ü

Borojeni et al. (2018)

Wu et al. (2019)

Yoon and Ji (2019)

ü

Liang et al. (2021)

Table 5. Summary of Literature review with Statistical Analysis Results on the effect of NDRT in takeover for highly automated driving
4. Discussion and Conclusion

Although NDRT selected for the experiment looked similar between various studies, task characteristics varied within each NDRT. That is, for some experiments, 'watching video' task consisted of watching a video on the smartphone, while for others, it consisted of watching a video on a mounted display on the center console of the vehicle. Therefore, although they seem to be the same task, the manner in which the driver engages in the task differs. Therefore, it is important to consider aspects of the task that are important for the takeover context such as hand position, visual distraction, cognitive load, and engagement.

For the experimental task, the tasks are defined as those where the users had to employ their visual and cognitive resources. However, for the natural task, the task specification does not seem to be of as much significance as in the experimental task. Hence, existing studies mostly focus on the difference in equipment involved rather than on the task itself. In view of this, we can focus on characteristics such as, the location of task (a hand-held personal equipment or a device mounted on the vehicle); extent of physical engagement in that task (using both hands, one hand in use, or no hand in use); and visual and cognitive aspects of the task.

From the evaluation of NDRT used in previous studies, it is possible to justify why they showed different results on the effect of NDRT for the same measures. This is because, although different studies seem to use the same tasks such as smartphone interaction, the condition in which the NDRT was performed differs between studies and also within a study. Therefore, it is important to analyze in detail the various resources used for the NDRT, such as the visual, motoric or physical, and mental resources, that might influence the transition of control (Yoon et al., 2021).

For the measures used to evaluate the transition of control in highly automated driving, it was found that existing studies implicitly consider the influence of NDRT. That is, the main focus of the measure is on how the transition of control occurred rather than on how the NDRT influenced the transition of control. However, cognitive measures such as workload and situation awareness not implicitly considered the NDRT in the evaluation process. Furthermore, the results of this research enable us to understand the importance of the state of drivers before the transition of control, which in this case is characterized by drivers involvement in NDRT. However, further research is needed to analyze and classify the aspects of the drivers that can impact the transition of control in highly automated driving.



References


1. Alrefaie, M.T., Summerskill, S. and Jackon, T.W., In a heart beat: Using driver's physiological changes to determine the quality of a takeover in highly automated vehicles. Accident Analysis & Prevention, 131, 180-190, 2019.
Google Scholar

2. Azevedo-Sa, H., Zhao, H., Esterwood, C., Yang, X.J., Tilbury, D.M. and Robert Jr, L.P., How internal and external risks affect the relationships between trust and driver behavior in automated driving systems. Transportation Research Part C: Emerging Technologies, 123, 102973, 2021.
Google Scholar

3. Baek, S.J., Yun, H. and Yang, J.H., How do humans respond when automated vehicles request an immediate vehicle control take-over?. In Proceedings of the 11th International Conference on Automotive User Interfaces and Interactive Vehicular Applications: Adjunct Proceedings (pp. 341-345), 2019.
Google Scholar

4. Blommer, M., Curry, R., Swaminathan, R., Tijerina, L., Talamonti, W. and Kochhar, D., Driver brake vs. steer response to sudden forward collision scenario in manual and automated driving modes. Transportation Research Part F: Traffic Psychology and Behaviour, 45, 93-101, 2017.
Google Scholar

5. Booth, A., Sutton, A. and Papaioannou, D., Systematic approaches to a successful literature review. 30(2), 205-206, 2016.
Google Scholar

6. Borojeni, S.S., Weber, L., Heuten, W. and Boll, S., From reading to driving: priming mobile users for take-over situations in highly automated driving. In Proceedings of the 20th International Conference on Human-computer Interaction with Mobile Devices and Services (pp. 1-12), 2018.
Google Scholar

7. Clark, H. and Feng, J., Age differences in the takeover of vehicle control and engagement in non-driving-related activities in simulated driving with conditional automation. Accident Analysis & Prevention, 106, 468-479, 2017.
Google Scholar

8. Dogan, E., Rahal, M.C., Deborne, R., Delhomme, P., Kemeny, A. and Perrin, J., Transition of control in a partially automated vehicle: Effects of anticipation and non-driving-related task involvement. Transportation Research Part F: Traffic Psychology and Behaviour, 46, 205-215, 2017.
Google Scholar

9. Du, N., Kim, J., Zhou, F., Pulver, E., Tilbury, D.M., Robert, L.P., Pradhan, A.K. and Yang, X.J., Evaluating effects of cognitive load, takeover request lead time, and traffic density on drivers' takeover performance in conditionally automated driving. In 12th International Conference on Automotive user Interfaces and Interactive Vehicular Applications (pp. 66-73), 2020.
Google Scholar

10. Eriksson, A. and Stanton, N.A., Takeover time in highly automated vehicles: noncritical transitions to and from manual control. Human Factors, 59(4), 689-705, 2017.
Google Scholar

11. Gerber, M.A., Schroeter, R., Xiaomeng, L. and Elhenawy, M., Self-interruptions of non-driving related tasks in automated vehicles: Mobile vs head-up display. In Proceedings of the 2020 CHI Conference on Human Factors in Computing Systems (pp. 1-9), 2020.
Google Scholar

12. Kim, H., Kim, W., Kim, J. and Yoon, D., A study on the control authority transition characteristics by driver information. In 2019 International Conference on Computational Science and Computational Intelligence (CSCI) (pp. 1562-1563). IEEE, 2019.
Google Scholar

13. Köhn, T., Gottlieb, M., Schermann, M. and Krcmar, H., Improving take-over quality in automated driving by interrupting non-driving tasks. In Proceedings of the 24th International Conference on Intelligent user Interfaces (pp. 510-517), 2019.
Google Scholar

14. Liang, N., Yang, J., Yu, D., Prakah-Asante, K.O., Curry, R., Blommer, M., Swaminathan, R. and Pitts, B.J., Using eye-tracking to investigate the effects of pre-takeover visual engagement on situation awareness during automated driving. Accident Analysis & Prevention, 157, 106143, 2021.
Google Scholar

15. Lin, R., Liu, N., Ma, L., Zhang, T. and Zhang, W., Exploring the self-regulation of secondary task engagement in the context of partially automated driving: A pilot study. Transportation Research Part F: Traffic Psychology and Behaviour, 64, 147-160, 2019.
Google Scholar

16. Lotz, A., Russwinkel, N. and Wohlfarth, E., Response times and gaze behavior of truck drivers in time critical conditional automated driving take-overs. Transportation Research Part F: Traffic Psychology and Behaviour, 64, 532-551, 2019.
Google Scholar

17. McKerral, A., Boyce, N. and Pammer, K., Supervising the self-driving car: situation awareness and fatigue during automated driving. In Proceedings of the 11th International Conference on Automotive User Interfaces and Interactive Vehicular Applications: Adjunct Proceedings (pp. 315-320), 2019.
Google Scholar

18. Minhas, S., Hernández-Sabaté, A., Ehsan, S. and McDonald-Maier, K.D., Effects of Non-Driving Related Tasks During Self-Driving Mode. IEEE Transactions on Intelligent Transportation Systems, 2020.


19. Moher, D., Liberati, A., Tetzlaff, J., Altman, D.G. and Group, Prisma, Preferred reporting items for systematic reviews and meta-analyses: the PRISMA statement. PLOS MEDICINE, 6(7), e1000097, 2009.


20. NHTSA. US department of transportation policy on automated vehicle development, 2013. https://www.nhtsa.gov/press-releases.


21. Ou, Y.K., Huang, W.X. and Fang, C.W., Effects of different takeover request interfaces on takeover behavior and performance during conditionally automated driving. Accident Analysis & Prevention, 162, 106425, 2021.
Google Scholar

22. SAE International., Taxonomy and definitions for terms related to driving automation systems for on-road motor vehicles. SAE, 2018.


23. Tanshi, F., Nobari, K.D., Wang, J. and Söffker, D., Design of Conditional Driving Automation Variables to Improve Takeover Performance, IFAC-PapersOnLine, 52(8), 170-175, 2019.
Google Scholar

24. Wang, J. and Söffker, D., Bridging gaps among human, assisted, and automated driving with DVIs: a conceptional experimental study. IEEE Transactions on Intelligent Transportation Systems, 20(6), 2096-2108, 2018.
Google Scholar

25. Wu, C., Wu, H., Lyu, N. and Zheng, M., Take-over performance and safety analysis under different scenarios and secondary tasks in conditionally automated driving. IEEE Access, 7, 136924-136933, 2019.
Google Scholar

26. Yang, L., Semiromi, M.B., Auger, D., Dmitruk, A., Brighton, J. and Zhao, Y., The implication of non-driving activities on situation awareness and take-over performance in level 3 automation. In IECON 2020 The 46th Annual Conference of the IEEE Industrial Electronics Society (pp. 5075-5080). IEEE, 2020.
Google Scholar

27. Yoon, S.H. and Ji, Y.G., Non-driving-related tasks, workload, and takeover performance in highly automated driving contexts. Transportation Research Part F: Traffic Psychology and Behaviour, 60, 620-631, 2019.
Google Scholar

28. Yoon, S.H., Kim, Y.W. and Ji, Y.G., The effects of takeover request modalities on highly automated car control transitions. Accident Analysis & Prevention, 123, 150-158, 2019.
Google Scholar

29. Yoon, S.H., Lee, S.C. and Ji, Y.G., Modeling takeover time based on non-driving-related task attributes in highly automated driving. Applied Ergonomics, 92, 103343, 2021.
Google Scholar

PIDS App ServiceClick here!

Download this article
